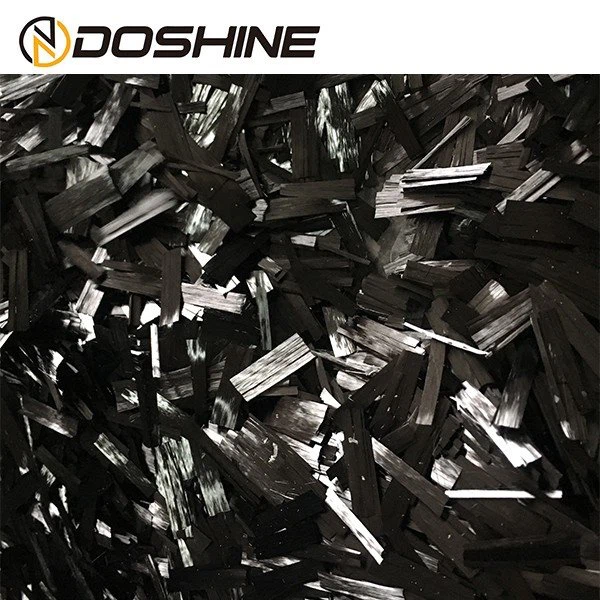

Short Cut Carbon Fiber
Short cut carbon fiber is produced to have a high bulk density value. Commonly compounded with general engineering thermoplastics (e.g., PC, Nylon, etc.) and high-temperature thermoplastic resins (e.g, PEEK, PEI, etc.), the resulting composite offers industry-leading high strength-to-weight and stiffness-to-weight ratios. DOSHINE’s chopped fibers also distribute easily during compounding, thereby improving process and product performance.
Basic data | |
Fiber length (mm) | 3-20mm |
Filament Diameter (Ωm) | 7-10 |
Tensile Strength (GPa) | 3.0-3.6 |
Tensile Modulus (GPa) | 220-240 |
Density (g/cm3) | 1.6-1.76 |
Color | Black |
Sizing Type & Amount (%) | 1.5% |
Electrical Resistivity | 1.5×10 - 3Ωcm |
Carbon content | ≥95% |
Application
(1) Reinforce the modified plastics such as nylon (PA), polypropylene (PP), polycarbonate (PC), phenolic (PF), polytetrafluoroethylene (PTFE), polyimide ( PI), etc.;
(2) Construction: reinforce the materials like cement, conductive coatings paint;
(3) Electric field: can be used to produce conductive paper, electric panels, conductive FRP, needle mat, etc.;
(4) Insulation material: carbon fiber reinforced refractory brick, carbon fiber-reinforced ceramics;
(5) New energy: fuel cell electrodes.
